Gearbox (Gear Speed Reducer for Winch)

  • NB405W3
  • NB407W3
  • NB410W3
  • NB413W3

Superior Performance

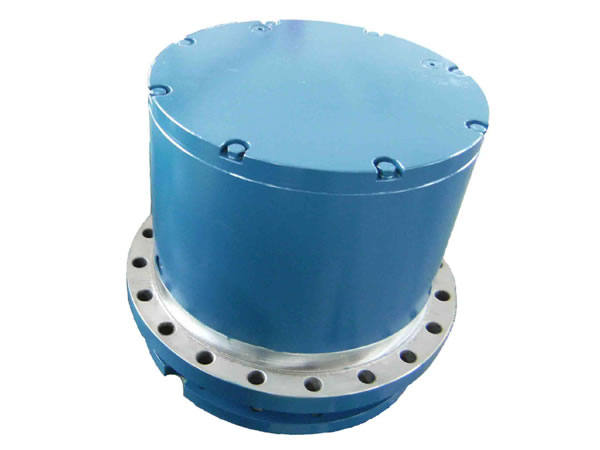

The NB400W Serieswinch drive planetary gearbox can fit into a winch drum and function as a gear speed reducer for winch. The performance has been rated in conformity with FEM M5 standards with an output maximum speed of 25 rpm, which is the world standard for self-propelled and onboard cranes.

NB400W Series gearboxes are the ideal solution for all lifting applications: our planetary gears are specially designed for use as winch drives inside cable drums, available with hydraulic and electric motor adaptor. They feature two close-mounted flanges, one of which is attached to the winch frame and the other of which is fixed to the cable drum, the drive housing therefore acts as the main drum mounting.

Key Features
1. Output torque range: 1000-280000 N.m
2. Gear ratios: i=5.3-400

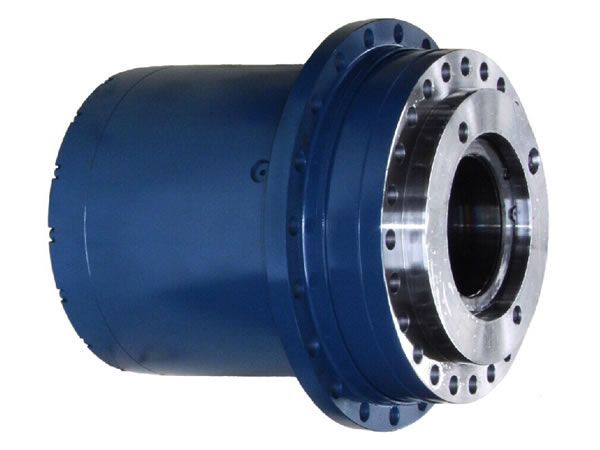

3. Support: the gearbox has rotating housing flanges to fit winch

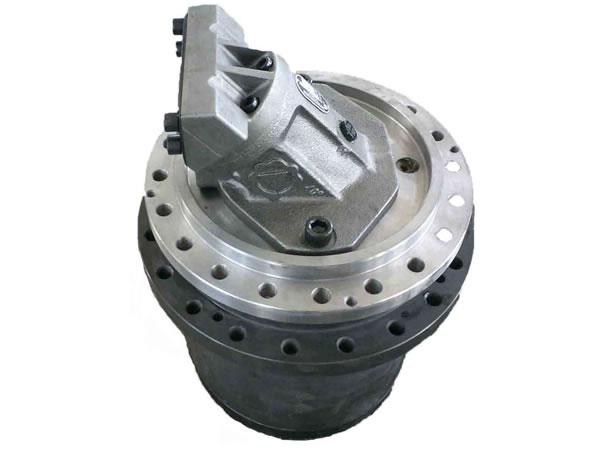

4. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others
5. Hydraulic motor options: pressure relief valve, overcenter valve on request
6. Bearing:robust bearing system absorbing the forces exerted by the ring gear
7. Brake: hydraulic released parking brake on request
8. Performance figures refer to FEM standards, class M5 (T5-L2) for output max. speeds of 25 rpm.
9. Technical data and installation dimension of NB400W Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 800 Series, so these three can be used interchangeably.

Type Max. torque N.m Range of ratios (i) Max. Input speed (rpm) Braking torque(N.m)
NB400W1 870 6.09 1000 130
NB401W1 1300 6.2 1000 270
NB402W2 4000 12.4-37.1 3500 -
NB403W2 4000 15.4-40 3500 270
NB405W 7000 20-80 3500 270
NB405.4W 5500 26-57 3500 280
NB406AW 12500 23-220 3500 430
NB406W 13000 28-140 3500 430
NB406BW3 17500 63-136 3500 430
NB407AW 18000 38-136 3500 430-530
NB407W3 26000 63-136 3500 530
NB410W3 37500 62-177 3500 530
NB413W3 42500 86-172 3500 610
NB414W3 67000 76-186 3500 1200
NB415W3 100000 81-215 3000 1200
NB416W3 140000 87-255 3000 2000
NB417W3 200000 123-365 3000 2000
NB419W3 275000 161-306 2500 3000
Specific Dimensions and Technical Parameters Inquiry
