Gearbox (Right Angle Gear Drives)

  • NB301R2-PZ
  • NB305R4-PZ
  • NB306R2-HC
  • NB311R4-HC

Superior performance

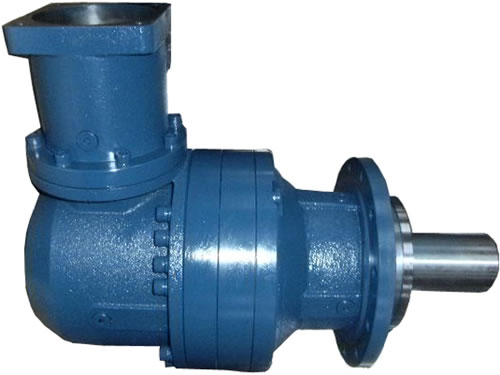

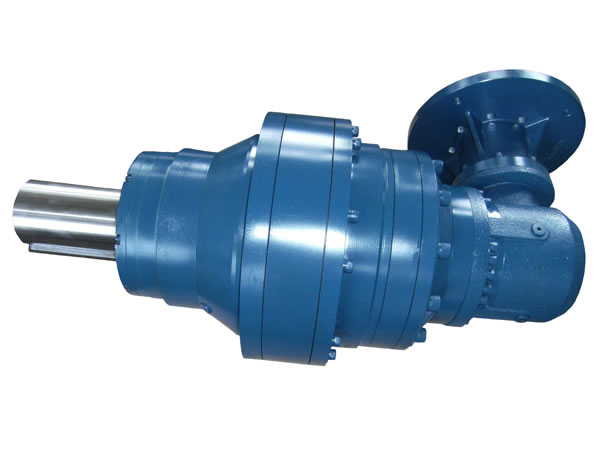

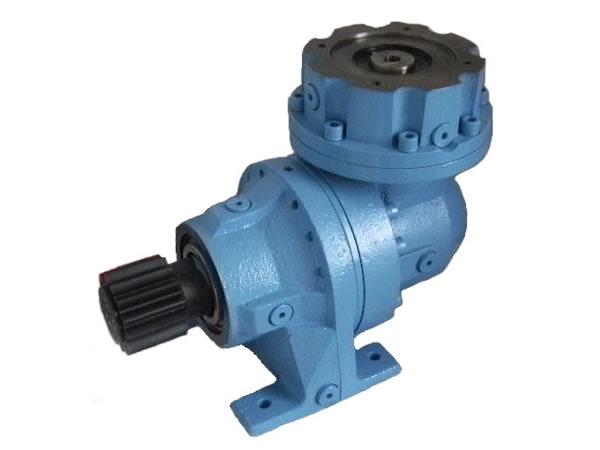

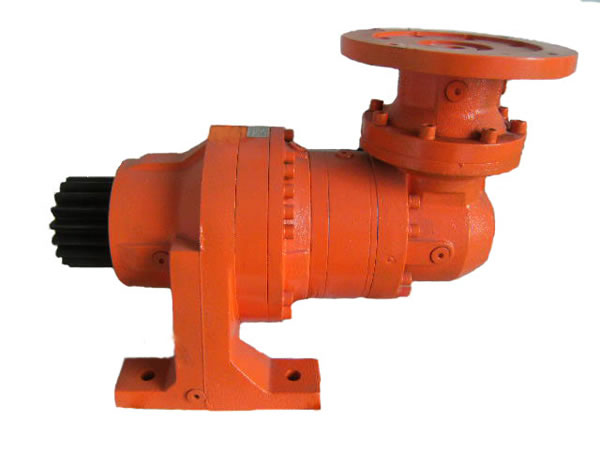

The NBPG NB300R Series gearbox is a right angle gear drive and the best solution for all applications requiring high torque with minimum dimensions for fixed industrial equipment and heavy self-propelled machines. This planetary gearhead offers a substantial improvement over traditional gearboxes in terms of size and weight. The modular design combines high performance with low cost due to its compact size, excellent reliability, simple installation, and reduced maintenance. The NB300R Series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications.

The NB300R Series is also available in a high power version, linking the performance of NBPG's planetary technology with the high quality and reliability of gearboxes: a solution that is more efficient, quieter, more compact, and offers a better price/performance ratio compared with traditional gear units.

Key Features
Torque Range
1000-450.000 Nm

Transmissible Mechanical Power
up to 150 kW

Gear Ratios
6.9-9.000

Gear Unit Versions
Right angle (with a spiral bevel gear set)

Output Configuration
Foot and flange mounted
Output shaft: solid with key, splined, splined hollow, hollow with shrink disc

Input Configurations
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and Nema motor adaptors
Solid input shaft

Hydraulic Brake
Hydraulically released parking brake on request

Electric Brake
DC and AC type

Tipo Torque Nm
NB300R NB300R2, NB300R3, NB300R4 1000
NB301R NB301R2, NB301R3, NB301R4 1750
NB303R NB303R2, NB303R3, NB303R4 2500
NB305R NB305R2, NB305R3, NB305R4 5000
NB306R NB306R2, NB306R3, NB306R4 8500
NB307R NB307R2, NB307R3, NB307R4 12500
NB309R NB309R2, NB309R3, NB309R4 18000
NB310R NB310R2, NB310R3, NB310R4 25000
NB311R NB311R2, NB311R3, NB311R4 40000
NB313R NB313R2, NB313R3, NB313R4 55000
NB315R NB315R3, NB315R4 100000
NB316R NB316R3, NB316R4 135000
NB317R NB317R3, NB317R4 170000
NB318R NB318R4 250000
NB319R NB319R4 350000
NB321R NB321R4 500000
