Auburn Gear

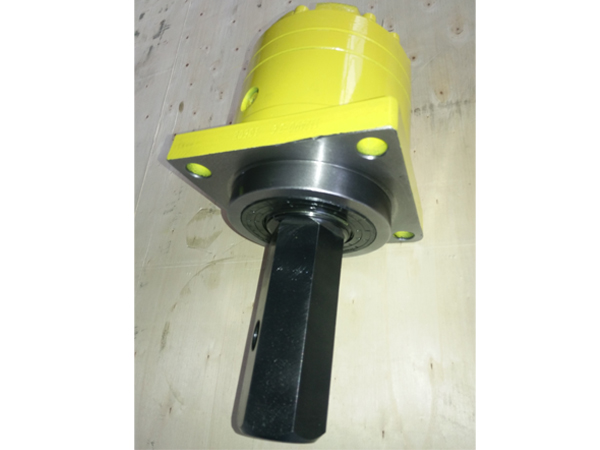

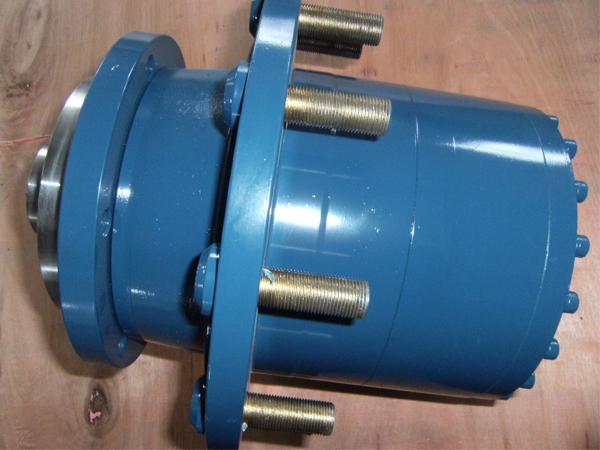

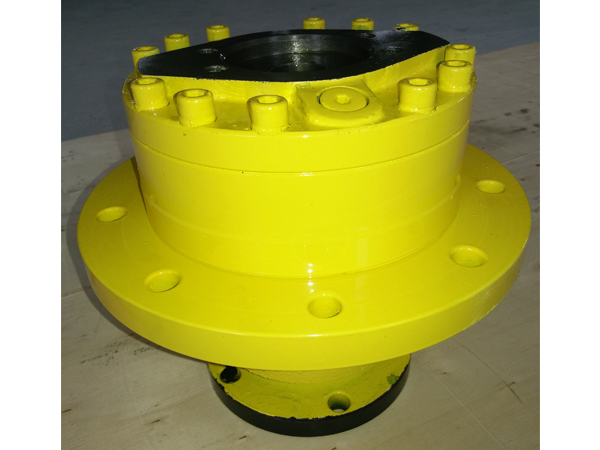

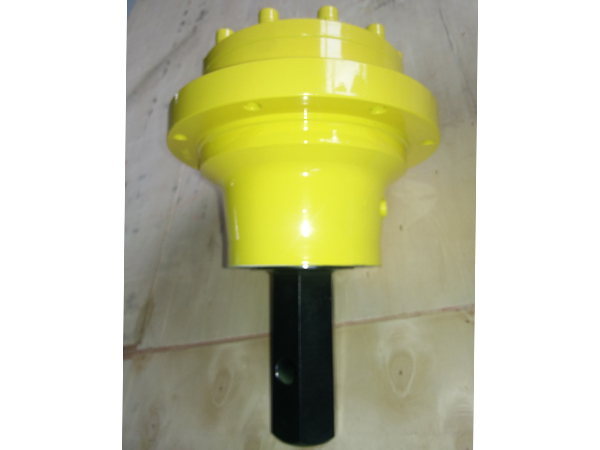

The size of model 3 to model 8 series power wheel planetary gear drives, is American standard size, which is suitable for the North American customers. The technical parameters and installation dimensions are same as the auburn gear's Model 3, Model 4, Model 5, Model 6, Model 6B, Model 7, Model 7B, Model 8, Model 8B, and Model 9, which can be replaced with them also.

NBPG Type Auburn Gear Type Max. Torque N.m Range of Ratios ( i ) Max. Input Speed (rpm) Braking Torque (N.m)
3TA4 3T2A4 2200 3.54-12.19 3500 120-370
4TA4` 4T2A5` 4520 3.67-13.87 3500 260-440
6WA, 6WA1,6WB 6WB1,6WAF, 6WA1F,6WBF 6WB1F 6WA,6WB,6WA1,6WAF 6WB1,6WBF,6WBC 6WBD,6W2B,6W2B1 6W2B2,6W2A,6W2A1 6W2A2,7WB,7WB1 7WB2,7WBF1,7WA 7WA1,AWA2,7WAF1 7000 2.62-30.38 3500 150-440
6TA, 6TAF,6TB 6TBF,6SA, 6SAF, 6SBF 6SC 6TA,6TA2,6TA4,6TA5 6TB,6TC,6SA,6SA2 6SB,6SC,6TAF,6TBF 6SAF,6SBF,6S2A2,6S2B 6S2A,6S2C,7SA,7SA2 7SB,7SC,7SKOO 7000 3.81-35.31 3500 150-440
6RA,6RB 6FA,6FB 6RA,6RA2,6RA4,6RA5 6RB,6RC,6FA,6FA2, 6FA4,6FA5,6FB,6FC 6TKOO,6SKOO 7000 3.81-35.31 3500 150-440
6SW1,6SW2 6SW3,6SW4 6SW1,6SW2 6SW3,6SW4 5650 3.81-35.31 3500 150-440
8WB,8WB1,8WC 8WB4,8WB5 8WC4,8WC5 8WB,8WB1,BWB4 8WB5,8WC,8WC4,8WC5 8W2B,8W2B3,8W2B5 8W2C,8W2C2,8W2C5 8W2C6,9WB1,9WB2 9WB3,9WC1,9WC2 9WC3 14000 15-50 3500 160-440
8TA,8TA1,8TB 8TB1,8TC,8TC1 8TD,8TD1,8SA 8SA1,8SB,8SB1 8SC,8SC1 8TA,8TA1,8TC,8TC1 8TD,8TD1,8SA,8SA1 8SB,8SB1,8SC,8SC1 8SKOO,8S1KOO,8T2A 8T2A1,8T2C,8T2C1 8T2D,8T2D1,8S2A 8S2A1,8S2B,8S2B1,8S2C 8S2C1,8S2KOO 8S21KOO,9SA1,9SA2 9SB1,9SC1,9SC2,9SB2 9SKOO,9S1KOO 18000 28-140 3500 430
